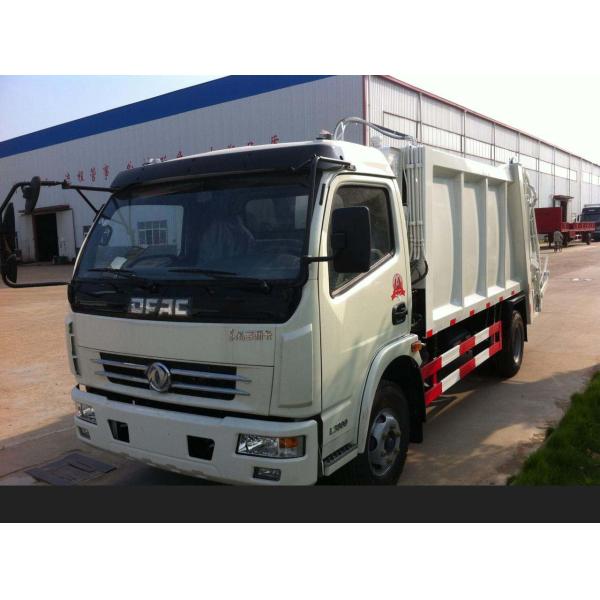

Dongfeng 4m3 5m3 6m3 Comperssion Garbage Truck 4*2 Single Row 120 hp 2axles
Description&Applications:
Compression garbage truck is the urban sanitation special vehicle which is used to highly collecting,transiting garbage and could avoid to leak along the way leading to secondary pollution in the collecting and transiting process.It is the ideal urban sanitation equipment.
1. The collecting method is simple.
2. High compression ratio and big loading capacity
3. Automatic operation: adopting computer controlling system,could set two operating models with full-automation and half-automation.
Competitive Advantage:
1- powful R & D capabilities------we can design and produce the truck according to different trash cans of different countries so that it can be fit for the different countries’ demand.
2- strict quality control----stable quality for each truck
3- competitive price-----based on same product, our price is most competitive
4- best service-----we cherish each customer and opportunity.
Specifications:
Dongfeng 4 m3 5 m3 6 m3 Comperssion Garbage Truck 4*2 Single Row 120 hp 2axles
| Item | unit | parameter |
| Chassis model | | EQ1081TJA |
| Overall dimensions | mm | 6125*2140*2600 |
| | Fact loading | kg | 2500 |
| Mass in working order | kg | 5195 |
| Wheel base | mm | 3100 |
| F/R track base | 1750/1586 |
| Approach/departure angle | ° | 18/13 |
| Exhaust/hp | ml/kw | 3856/120 |
| Max speed | km/h | 90 |
| Tire specification | 7.00-16,7.50-16 | Engine type | CY4102BZLQ |
| Traction system | 4*2 | Transmission | 5-speed |
| Number of axles | 2 | Electric system | 24v |
| Operation control system | Steering wheel | Allowable passengers in cab | 3 |
| Equipment | Equipped with dustbin, hydraulic system and operating system. Equipped with two advanced Two-way-acting hydraulic cylinders One vehicle can cooperate with several dustbins to improve the ability of cycle operation,. cycling time<60s. Pressure is large, leakproofness is good, operation is convenient and security is dependable. |
| Engine | Yunnei Diesel Engine (Europe 2) |
| Production cycle | 15-20 days |
| Warranty | 12 month, from the date of supply |
